PLUS TAKE AN ADDITIONAL $1,400 OFF IN CUSTOMER CASH VALID THROUGH 06/30/2026!!

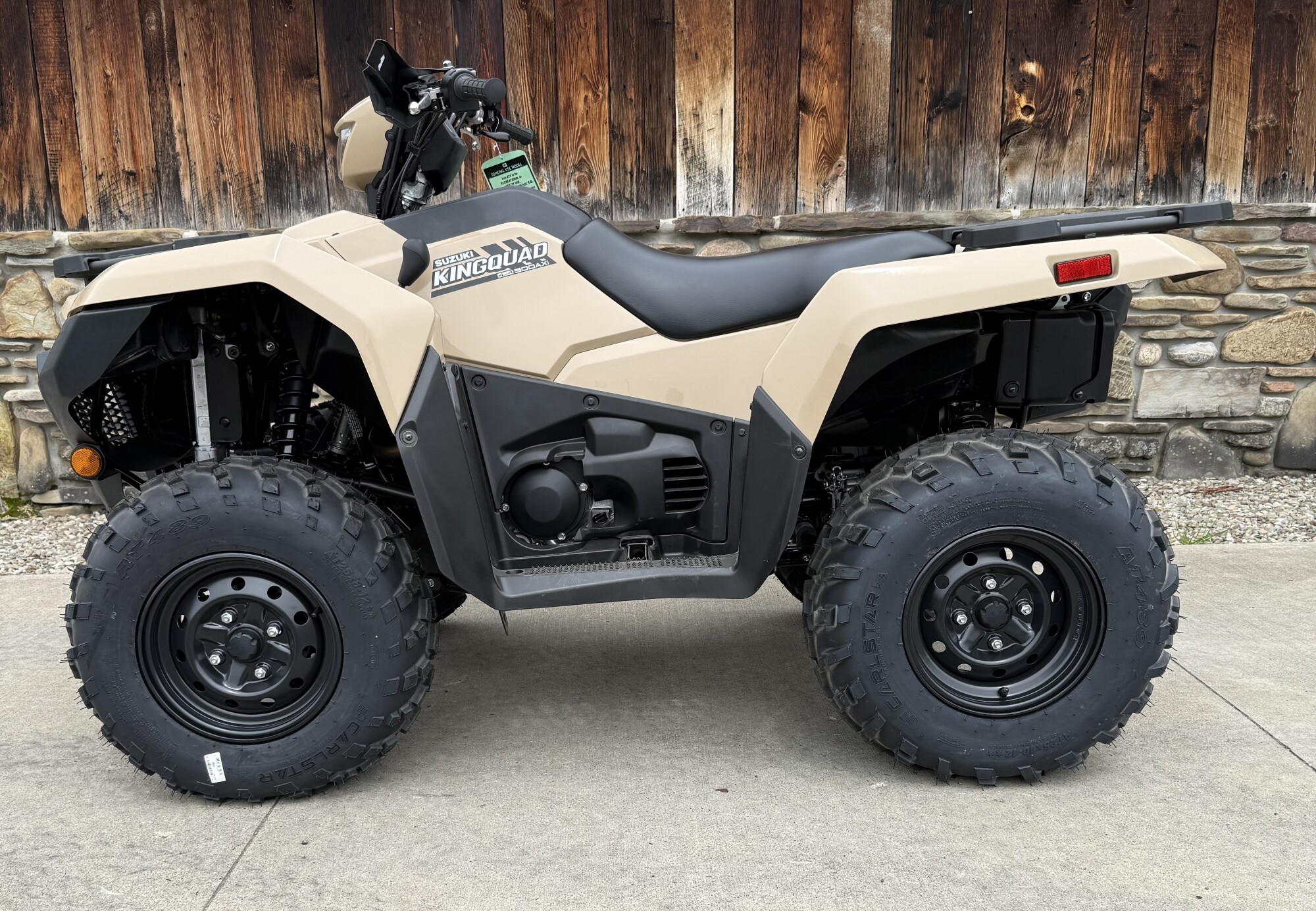

2025 Suzuki KingQuad 500AXiThe KingQuad 500AXi is not just an ATV, it’s a KingQuad ATV. Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The 2025 Suzuki KingQuad 500AXi helps tackle challenging terrain with the capabilities that only a KingQuad possesses. Features may include: Engine The powerful, 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power. Transmission The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill. Chassis Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment. Electrical The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature. Body & Styling Available in Flame Red or Terra Green, the bold, angular bodywork features high-clearance fenders that offer great protection for the rider. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service. Additional Suzuki’s 24-month limited warranty is much longer than other ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).

Specifications

ENGINE

add remove
- Engine Type:

  Single-Cylinder
- Cylinders:

  1
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  4
- Valves Per Cylinder:

  4
- Valve Configuration:

  SOHC
- Bore (in):

  3.4
- Stroke (in):

  3.2
- Displacement (cc):

  493
- Fuel Type:

  Gas
- Fuel Injector:

  Yes
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Kill Switch / Tether Cord:

  Not Available
- Engine Block Heater:

  Not Available
- Snorkel Air Intake:

  Standard
- Starter:

  Electric
- Compression ratio:

  9.9:1
TRANSMISSION

add remove
- Transmission Type:

  Continuously Variable (CVT)
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Reverse:

  Yes
- Primary Drive (Engine / Transmission):

  Belt
- Transmission Brand:

  Quadmatic™
- Primary Drive (Front Wheel):

  Shaft
DRIVE LINE

add remove
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  3
- Rear Unlocking Differential:

  No
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Standard
- Differential Lock:

  Standard
- Limited Slip Differential Location:

  Front
- Differential Lock Location:

  Front
TECHNICAL SPECIFICATIONS

add remove
- Width (in):

  47.8
- Height (in):

  50.6
- Wheelbase (in):

  50.6
- Ground Clearance (in):

  10.2
- Fuel Capacity (gal):

  4.6
- Towing Capacity (lbs):

  1322
- Storage Capacity (gal):

  0.6
- Wet Weight (lbs):

  714
SUSPENSION

add remove
- Front Suspension Type:

  Independent Double A-Arm
- Front Travel (in):

  6.7
- Front Adjustable Fork Pre-Load:

  Yes
- Front Adjustable Rebound Damping:

  No
- Front Central Suspension Strut:

  No
- Rear Suspension Type:

  Independent Double A-Arm
- Rear Travel (in):

  7.7
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Rear Adjustable Rebound Damping:

  No
- Number Rear Shock Absorbers:

  2
- Front Stabilizer Bar:

  No
- Rear Stabilizer Bar:

  Yes
- Steering Damper:

  No
- Air Adjustable:

  No
WHEELS & TIRES

add remove
- Wheels Composition:

  Steel
- Front Tire (Full Spec):

  Carlisle AT 25 X 8-12
- Rear Tire (Full Spec):

  Carlisle AT 25 X 10-12
- Spare Tire:

  Not Available
- Tube / Tubeless:

  Tubeless
- Chromed:

  No
- Tire Chains:

  Not Available
BRAKES

add remove
- Front Brake Type:

  Dual Hydraulic Disc
- Rear Brake Type:

  Sealed Oil Bath Multi-Disc
- Anti-Lock Brakes:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Engine Braking Brand Name:

  Engine Braking System
TOWING & HAULING

add remove
- Front Hitch:

  Not Available
- Rear Hitch:

  Standard
- Trailer:

  Not Available
- Winch:

  Optional
- Roller Fairlead:

  Optional
- Rear Hitch Type:

  Receiver
SEATS

add remove
- Seat Type:

  One-Piece
- Seat Location:

  Driver
- Seat Material:

  Vinyl
- Seat Height (in):

  37
- Number Of Seats:

  1
- Detachable Passenger Seat:

  Not Available
- Grab Rail or Strap:

  Not Available
