‹ Home › Inventory › 2025 Suzuki KingQuad 750AXi Power Steering Terra Green

PLUS TAKE AN ADDITIONAL $1,600 OFF IN CUSTOMER CASH VALID THROUGH 06/30/2026!!

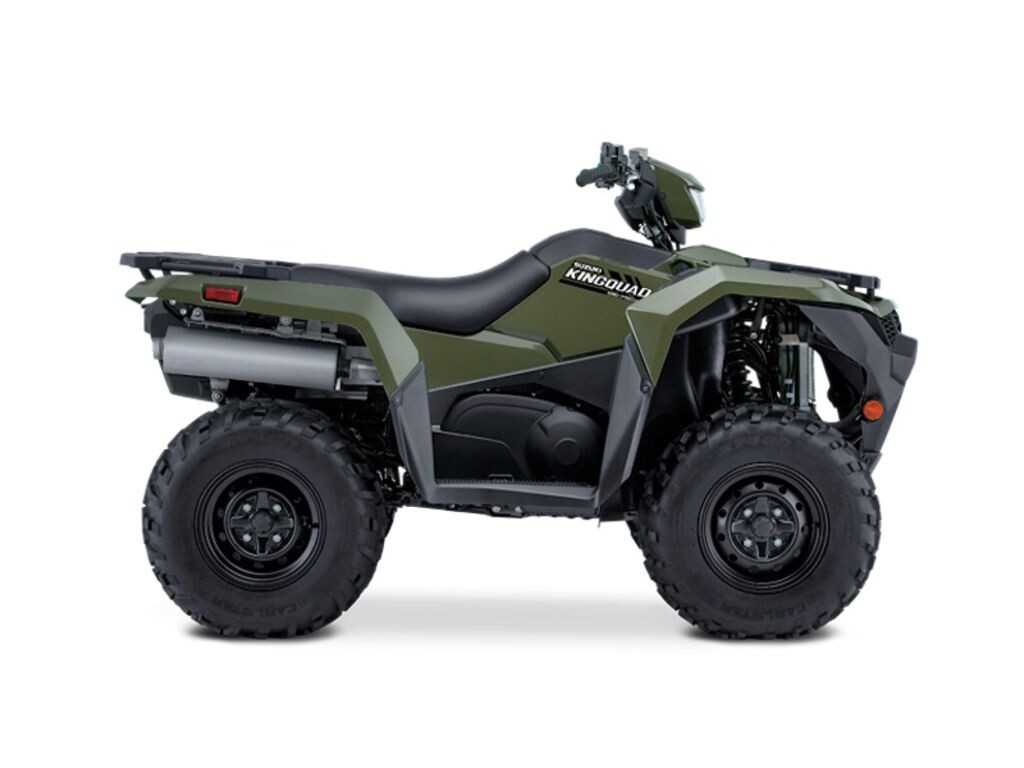

2025 Suzuki KingQuad 750AXi Power SteeringThe KingQuad 750AXi Power Steering is not just a new ATV, it's a KingQuad ATV. Suzuki, the inventor of the 4-wheel ATV, has created the world's best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting, and is ready for you to join its history. The KingQuad 750AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses. Features may include: Bold, angular styling, and a relaxed riding position with low-effort electronic power steering Torque-rich, EFI-fed engine, and QuadMatic™ transmission with effective engine braking ENGINE The 722cc, DOHC, single-cylinder, liquid-cooled, four-stroke engine delivers strong low- to mid-range torque and impressive peak horsepower. The four-valve cylinder head has large 36mm intake valves and straight ports for superb cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system helps create a compact engine. TRANSMISSION The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off to help reduce speed when riding downhill. The CVT tuning provides controlled engine braking to boost rider confidence and comfort during downhill riding. CHASSIS Independent double A-arm front suspension (6.7 inches of wheel travel) and the fully independent, A-arm/I-beam rear suspension (7.7 inches of wheel travel) use four large diameter, gas-charged shock absorbers with five-way spring preload adjustment. Electrical The multi-function instrument panel has excellent appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for the speedometer, odometer, twin trip meter, hour meter, clock, fuel level, riding range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.

Specifications

ENGINE

add remove
- Engine Type:

  Single-Cylinder
- Cylinders:

  1
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  4
- Valves Per Cylinder:

  4
- Valve Configuration:

  DOHC
- Bore (in):

  4.1
- Stroke (in):

  3.35
- Displacement (cc):

  722
- Fuel Type:

  Gas
- Fuel Injector:

  Yes
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Kill Switch / Tether Cord:

  Not Available
- Engine Block Heater:

  Not Available
- Snorkel Air Intake:

  Standard
- Starter:

  Electric
- Compression ratio:

  9.9:1
TRANSMISSION

add remove
- Transmission Type:

  Continuously Variable (CVT)
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Reverse:

  Yes
- Primary Drive (Engine / Transmission):

  Belt
- Transmission Brand:

  Quadmatic™
- Primary Drive (Front Wheel):

  Shaft
DRIVE LINE

add remove
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  3
- Rear Unlocking Differential:

  No
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Standard
- Differential Lock:

  Standard
- Limited Slip Differential Location:

  Front
- Differential Lock Location:

  Front
TECHNICAL SPECIFICATIONS

add remove
- Width (in):

  47.8
- Height (in):

  50.6
- Wheelbase (in):

  50.6
- Ground Clearance (in):

  10.2
- Fuel Capacity (gal):

  4.6
- Towing Capacity (lbs):

  1322
- Storage Capacity (gal):

  0.6
- Wet Weight (lbs):

  725
SUSPENSION

add remove
- Front Suspension Type:

  Independent Double A-Arm
- Front Travel (in):

  6.7
- Front Adjustable Fork Pre-Load:

  Yes
- Front Adjustable Rebound Damping:

  No
- Front Central Suspension Strut:

  No
- Rear Suspension Type:

  Independent Double A-Arm
- Rear Travel (in):

  7.7
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Rear Adjustable Rebound Damping:

  No
- Number Rear Shock Absorbers:

  2
- Front Stabilizer Bar:

  No
- Rear Stabilizer Bar:

  Yes
- Steering Damper:

  No
WHEELS & TIRES

add remove
- Wheels Composition:

  Steel
- Front Tire (Full Spec):

  Carlisle AT 25 X 8-12
- Rear Tire (Full Spec):

  Carlisle AT 25 X 10-12
- Spare Tire:

  Not Available
- Tube / Tubeless:

  Tubeless
- Chromed:

  No
- Tire Chains:

  Not Available
BRAKES

add remove
- Front Brake Type:

  Dual Hydraulic Disc
- Front Brake Diameter (in):

  7.9
- Rear Brake Type:

  Sealed Oil Bath Multi-Disc
- Anti-Lock Brakes:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Engine Braking Brand Name:

  Engine Braking System
TOWING & HAULING

add remove
- Front Hitch:

  Not Available
- Rear Hitch:

  Standard
- Trailer:

  Not Available
- Winch:

  Optional
- Roller Fairlead:

  Optional
- Rear Hitch Type:

  Receiver
SEATS

add remove
- Seat Type:

  One-Piece
- Seat Location:

  Driver
- Seat Material:

  Vinyl
- Seat Height (in):

  36.2
- Number Of Seats:

  1
- Detachable Passenger Seat:

  Not Available
- Grab Rail or Strap:

  Not Available
