‹ Home › Inventory › 2026 Honda Pioneer 700 Forest TrueTimber® Atera Camo

$1,000 HONDA BONUS BUCKS VALID THROUGH 06/30/2026!!

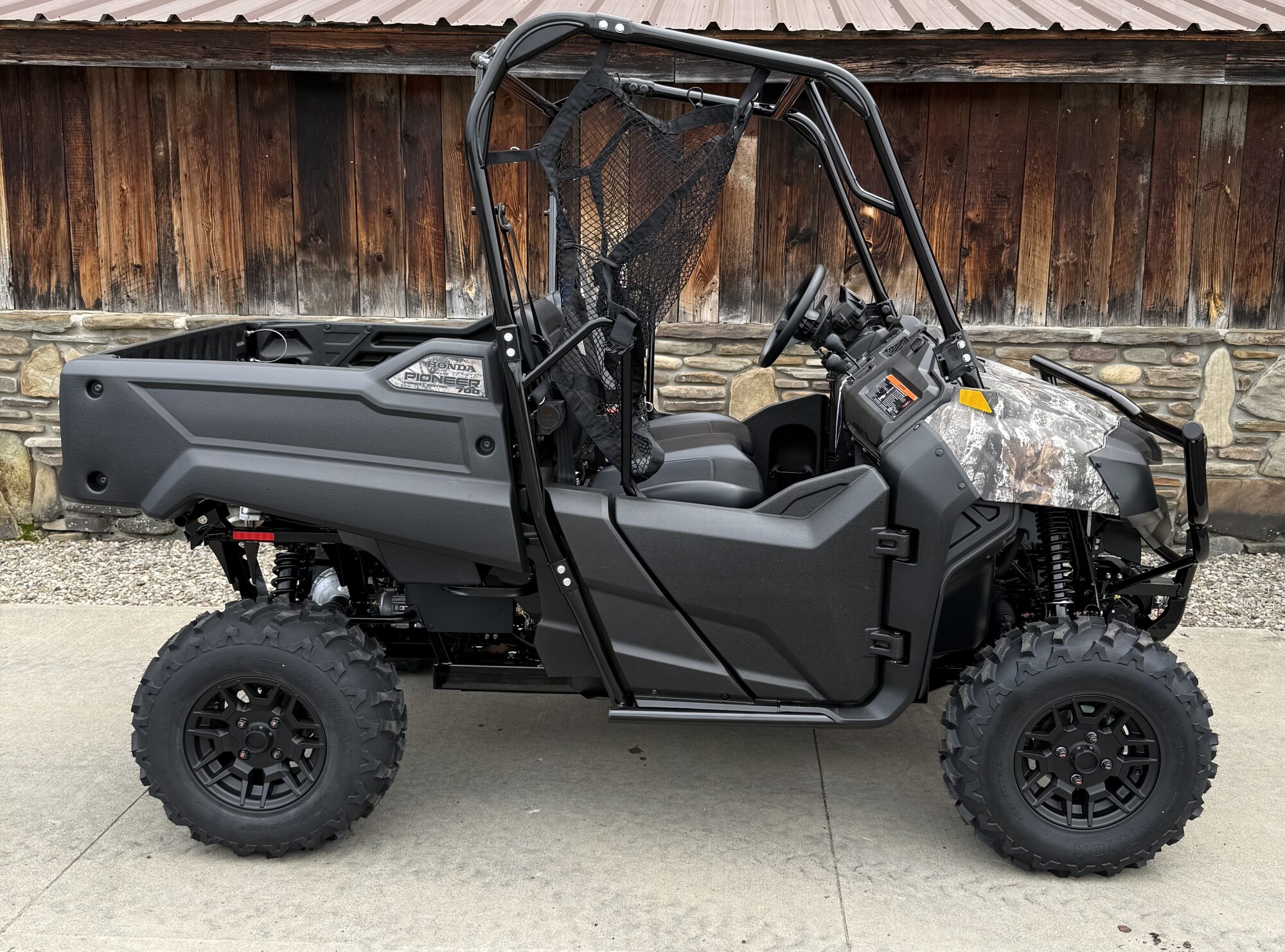

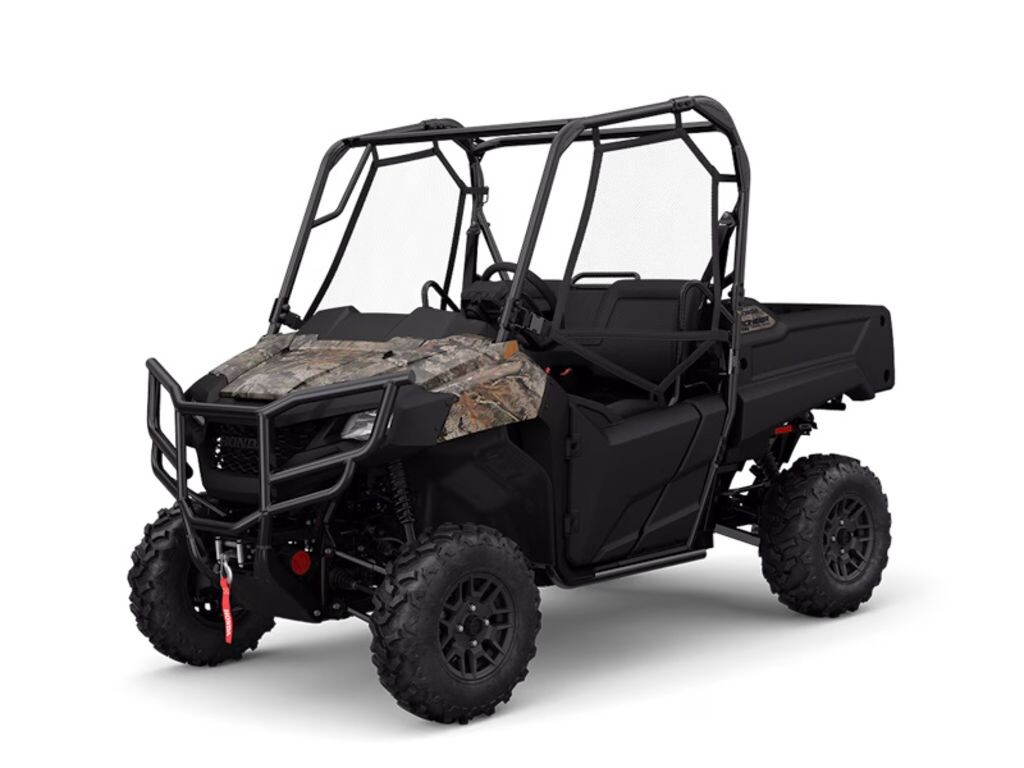

2026 Honda® Pioneer 700 ForestUPGRADE YOUR ADVENTURE. Perfectly sized and exceptionally equipped,for 2026 the Pioneer 700 has been updated for greater versatility and comfort. With expanded storage, a cooler interior, and rugged new Kenda tires, it’s built to elevate every job and every adventure. Available in standard, Deluxe, and Forest trims, now with even more Honda accessories Features may include: ELECTRIC POWER STEERING (EPS) Our Honda Electric Power Steering has always been a groundbreaking innovation, and it’s even better this year. How? We’ve given it a new next-generation brushless motor, and improved the return-to-center function. (Available on Pioneer 700-4 Deluxe and Pioneer 700-4 Forest) AT/MT MODE AND PADDLE SHIFTERS With the Honda Pioneer 700-4 Deluxe and Forest, you can let the automatic transmission shift for you, or you can take charge and choose which gear you want for yourself via the steering-column mounted paddle shifters—you can even shift from auto to manual (AT to MT) on the fly! RUGGED 675cc LIQUID-COOLED ENGINE Power to go further, and to keep on going. That’s what the 675cc four-stroke single delivers. Rubber-mounted for less cabin vibration. Fuel-injected for reliable starts and performance in inclement weather. And proven reliability for hunting down thrill after thrill. INSTURMENT DISPLAY Our Pioneer 700’s instrument display features an LCD screen that’s twice the size of the previous unit with larger text and more information. The whole unit tilts along with our tilt wheel too, making it easier to read.

Specifications

Engine

add remove
- Engine Type:

  Single-Cylinder
- Engine:

  Standard
- Cylinders:

  1
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  4
- Valves Per Cylinder:

  4
- Valve Configuration:

  OHV
- Bore (mm):

  102
- Bore (in):

  4.02
- Stroke (mm):

  82.6
- Stroke (in):

  3.25
- Displacement (cc):

  675
- Displacement (ci):

  41.2
- Starter:

  Electric
- Fuel Type:

  Gas
- Fuel Requirements:

  Regular
- Carburetion:

  Standard
- Fuel Injector:

  Yes
- Fuel Injector Size (mm):

  40
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Parental Controls:

  Not Available
- Snorkel Air Intake:

  Not Available
- Engine Block Heater:

  Not Available
- Speed Governor:

  No
- Other Engine:

  Not Available
- Compression Ratio:

  9.2:1
TRANSMISSION

add remove
- Transmission:

  Standard
- Transmission Type:

  Automatic
- Number Of Speeds:

  3
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Primary Drive (Front Wheel):

  Shaft
- Reverse:

  Yes
- Adjustable Throttle:

  Not Available
- Other Transmission:

  Not Available
DRIVE LINE

add remove
- Driveline:

  Standard
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  3
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Not Available
- Differential Lock:

  Standard
- Differential Lock Location:

  Front / Rear
- Other Drive Line:

  Not Available
TECHNICAL SPECIFICATIONS

add remove
- Dimensions:

  Standard
- Length (mm):

  2926
- Width (in):

  60
- Width (mm):

  1524
- Height (in):

  77.4
- Height (mm):

  1966
- Wheelbase (in):

  76.8
- Wheelbase (mm):

  1950.7
- Turning Radius (ft):

  14.8
- Ground Clearance (in):

  10.4
- Ground Clearance (mm):

  264.2
- Weight:

  Standard
- Towing Capacity (lbs):

  1500
- Towing Capacity (kgs):

  680.4
- Capacities:

  Standard
- Fuel Capacity (gal):

  8.1
- Fuel Capacity (l):

  30.7
- Fuel Capacity Reserve (gal):

  1.5
- Fuel Capacity Reserve (l):

  5.7
- Performance:

  Standard
- Wet Weight (lbs):

  1362
- Wet Weight (kg):

  618
SUSPENSION

add remove
- Front Suspension:

  Standard
- Front Suspension Type:

  Independent Double Wishbone
- Front Travel (in):

  7.9
- Front Travel (mm):

  200.7
- Rear Suspension:

  Standard
- Rear Suspension Type:

  Independent Double Wishbone
- Rear Suspension Material:

  Steel
- Rear Travel (in):

  9.1
- Rear Travel (mm):

  231.1
- Number Rear Shock Absorbers:

  2
- Rear Stabilizer Bar:

  Yes
- Air Adjustable:

  No
- Center Suspension:

  Not Available
- Front Adjustable Fork Pre-Load:

  No
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Other Suspension:

  Not Available
WHEELS & TIRES

add remove
- Wheels:

  Standard
- Wheels Composition:

  Aluminum
- Front Wheel Width (in):

  7
- Rear Wheel Width (in):

  8
- Front Tire Diameter (in):

  25
- Rear Tire Diameter (in):

  25
- Wheel Weights:

  Not Available
- Tires:

  Standard
- Front Tire Width:

  8
- Front Wheel Diameter:

  12
- Rear Tire Width:

  10
- Rear Wheel Diameter:

  12
- Front Tire (Full Spec):

  Kenda Mastodon AT: 25 x 8-12
- Rear Tire (Full Spec):

  Kenda Mastodon AT: 25 x 10-12
- Tire Chains:

  Not Available
- Spare Tire:

  Not Available
- Tire Brand:

  Kenda
- Other Wheels & Tires:

  Not Available
BRAKES

add remove
- Brakes:

  Standard
- Front Brake Type:

  Dual Hydraulic Disc
- Front Brake Diameter (in):

  7.9
- Front Brake Diameter (mm):

  200
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  6.7
- Rear Brake Diameter (mm):

  170
- Anti-Lock Brakes:

  Not Available
- Parking Brake:

  Standard
- Engine Braking:

  Standard
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Other Brakes:

  Not Available
