$1,000 HONDA BONUS BUCKS VALID THROUGH 06/30/2026!!

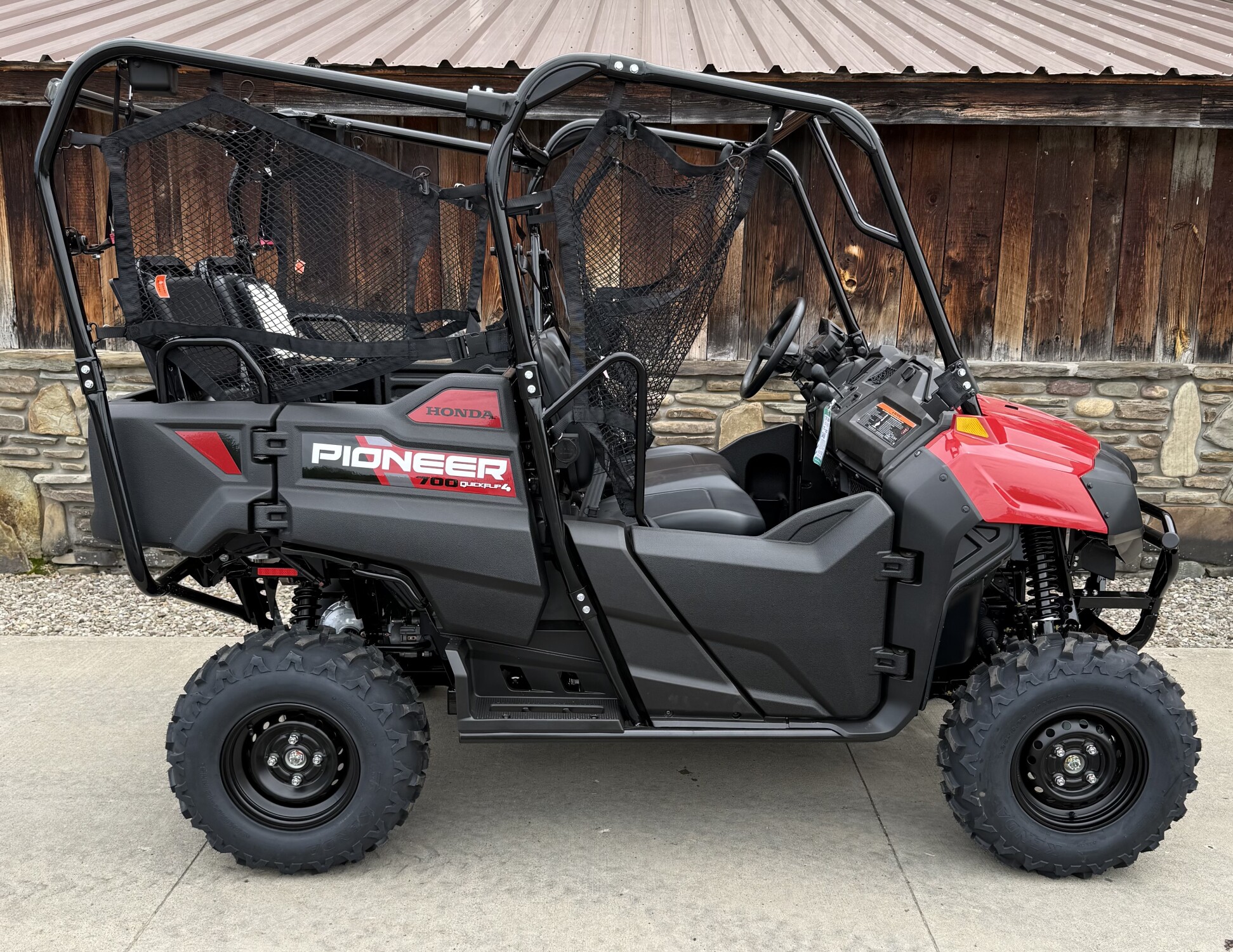

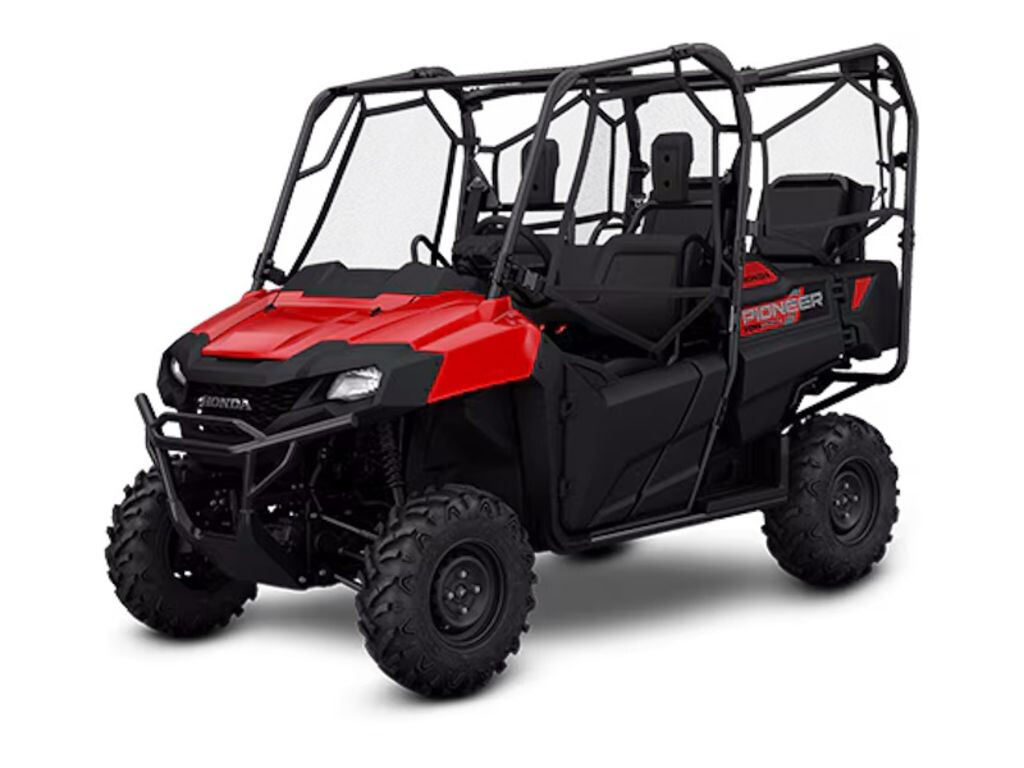

2026 Honda® Pioneer 700-4EXPLORE FURTHER. BRING THE CREW. Adventure just got an upgrade. For 2026, the new Pioneer 700-4 blends proven Honda performance with enhanced comfort and convenience. As always, it features our convenient QuickFlip® seating, but now adds more storage, a cooler interior, and rugged new Kenda tires. Choose from standard, Deluxe, or Forest trims, and redefine what versatility and capability can do for you and your crew. Features may include: ELECTRIC POWER STEERING (EPS) Our Honda Electric Power Steering has always been a groundbreaking innovation, and it’s even better this year. How? We’ve given it a new next-generation brushless motor, and improved the return-to-center function. (Available on Pioneer 700-4 Deluxe and Pioneer 700-4 Forest) AT/MT MODE AND PADDLE SHIFTERS With the Honda Pioneer 700-4 Deluxe and Forest, you can let the automatic transmission shift for you, or you can take charge and choose which gear you want for yourself via the steering-column mounted paddle shifters—you can even shift from auto to manual (AT to MT) on the fly! RUGGED 675cc LIQUID-COOLED ENGINE Power to go further, and to keep on going. That’s what the 675cc four-stroke single delivers. Rubber-mounted for less cabin vibration. Fuel-injected for reliable starts and performance in inclement weather. And proven reliability for hunting down thrill after thrill. QuickFlip SEATING The Pioneer 700-4 features our versatile QuickFlip seating. An industry exclusive, in 2-person mode you get full , flat cargo and tilt-bed functionality. Need to carry one or two more passengers? The rear seats pop up in an instant.

Specifications

Engine

add remove
- Engine Type:

  Single-Cylinder
- Engine:

  Standard
- Cylinders:

  1
- Engine Stroke:

  4-Stroke
- Cooling:

  Liquid
- Valves:

  4
- Valves Per Cylinder:

  4
- Valve Configuration:

  OHV
- Bore (mm):

  102
- Bore (in):

  4.02
- Stroke (mm):

  82.6
- Stroke (in):

  3.25
- Displacement (cc):

  675
- Displacement (ci):

  41.2
- Starter:

  Electric
- Fuel Type:

  Gas
- Fuel Requirements:

  Regular
- Carburetion:

  Standard
- Fuel Injector:

  Yes
- Fuel Injector Size (mm):

  40
- Carburetor:

  No
- Carburetion Type:

  Fuel Injected
- Parental Controls:

  Not Available
- Snorkel Air Intake:

  Not Available
- Engine Block Heater:

  Not Available
- Other Engine:

  Not Available
- Compression Ratio:

  9.2:1
TRANSMISSION

add remove
- Transmission:

  Standard
- Transmission Type:

  Automatic
- Number Of Speeds:

  3
- Hi / Low Range:

  Yes
- Primary Drive (Rear Wheel):

  Shaft
- Primary Drive (Front Wheel):

  Shaft
- Reverse:

  Yes
- Adjustable Throttle:

  Not Available
- Other Transmission:

  Not Available
DRIVE LINE

add remove
- Driveline:

  Standard
- Driveline Type:

  Selectable 4X2 / 4X4
- Number Of Driveline Modes:

  3
- Rear Solid Axle:

  No
- Limited Slip Differential:

  Not Available
- Differential Lock:

  Standard
- Differential Lock Location:

  Front / Rear
- Other Drive Line:

  Not Available
TECHNICAL SPECIFICATIONS

add remove
- Dimensions:

  Standard
- Length (mm):

  2915.9
- Width (in):

  59.9
- Width (mm):

  1521.5
- Height (in):

  77.9
- Height (mm):

  1978.7
- Wheelbase (in):

  76.8
- Wheelbase (mm):

  1950.7
- Turning Radius (ft):

  14.8
- Ground Clearance (in):

  10.7
- Ground Clearance (mm):

  271.8
- Weight:

  Standard
- Towing Capacity (lbs):

  1500
- Towing Capacity (kgs):

  680.4
- Capacities:

  Standard
- Fuel Capacity (gal):

  8.1
- Fuel Capacity (l):

  30.7
- Fuel Capacity Reserve (gal):

  1.5
- Fuel Capacity Reserve (l):

  5.7
- Performance:

  Standard
- Wet Weight (lbs):

  1435
- Wet Weight (kg):

  651
SUSPENSION

add remove
- Front Suspension:

  Standard
- Front Suspension Type:

  Independent Double Wishbone
- Front Travel (in):

  7.9
- Front Travel (mm):

  200.7
- Rear Suspension:

  Standard
- Rear Suspension Type:

  Independent Double Wishbone
- Rear Suspension Material:

  Steel
- Rear Travel (in):

  9.1
- Rear Travel (mm):

  231.1
- Number Rear Shock Absorbers:

  2
- Rear Stabilizer Bar:

  Yes
- Air Adjustable:

  No
- Center Suspension:

  Not Available
- Front Adjustable Fork Pre-Load:

  No
- Rear Adjustable Shock / Spring Pre-Load:

  Yes
- Other Suspension:

  Not Available
WHEELS & TIRES

add remove
- Wheels:

  Standard
- Wheels Composition:

  Steel
- Front Wheel Width (in):

  7
- Rear Wheel Width (in):

  8
- Front Tire Diameter (in):

  25
- Rear Tire Diameter (in):

  25
- Wheel Weights:

  Not Available
- Tires:

  Standard
- Front Tire Width:

  8
- Front Wheel Diameter:

  12
- Rear Tire Width:

  10
- Rear Wheel Diameter:

  12
- Front Tire (Full Spec):

  Kenda Mastodon AT: 25 x 8-12
- Rear Tire (Full Spec):

  Kenda Mastodon AT: 25 x 10-12
- Tire Chains:

  Not Available
- Spare Tire:

  Not Available
- Tire Brand:

  Kenda
- Other Wheels & Tires:

  Not Available
BRAKES

add remove
- Brakes:

  Standard
- Front Brake Type:

  Dual Hydraulic Disc
- Front Brake Diameter (in):

  7.9
- Front Brake Diameter (mm):

  200
- Rear Brake Type:

  Hydraulic Disc
- Rear Brake Diameter (in):

  6.7
- Rear Brake Diameter (mm):

  170
- Anti-Lock Brakes:

  Not Available
- Parking Brake:

  Standard
- Engine Braking:

  Standard
- Regenerative Braking:

  Not Available
- Regenerative Deceleration:

  Not Available
- Linked Brake System Front to Rear:

  Not Available
- Other Brakes:

  Not Available
